RCD Switch vs. Circuit Breaker: What’s the Difference? (And Why Your Life Might Depend on It)

Let’s play a quick game: Imagine your home’s electrical system is a superhero team. The RCD (Residual Current Device) and the circuit breaker are two of its most critical members—but they’ve got very different superpowers. One’s a ninja that saves you from electric shocks; the other’s a bodyguard that stops your house from burning down. Yet, most homeowners lump them together as “that box in the basement.” Big mistake.

Understanding the difference between an RCD switch and a circuit breaker isn’t just nerdy trivia—it’s about knowing how to protect your family, your gadgets, and your home.

Key Takeaways

• RCDs = Shock protection. Circuit breakers = Fire protection.
• Test RCDs monthly—they’re your first line of defense.
• RCBOs offer both protections but cost more.
• Never ignore tripping—it’s your electrical system screaming for help.

The Basics: What’s an RCD Switch?

AKA: GFCI (Ground Fault Circuit Interrupter) in some countries.
Job: Detects current leaks (when electricity escapes the circuit, like through water or your body).
Superpower: Prevents electric shocks and electrocution.

How It Works

Think of an RCD as a hyper-vigilant accountant. It constantly compares the current flowing out of a circuit to the current flowing back in. If there’s even a tiny mismatch (as little as 30 milliamps), it assumes electricity is escaping—maybe through a person—and cuts power in 0.03 seconds. That’s faster than you can scream, “Ouch!”

Where You’ll Find RCDs:

• Sockets in wet areas (bathrooms, kitchens, outdoors).
• Entire circuits in modern breaker panels (called “RCD-protected” circuits).
• Portable plugs for tools or outdoor equipment.

What’s a Circuit Breaker?

AKA: MCB (Miniature Circuit Breaker).
Job: Protects against overloads and short circuits.
Superpower: Prevents fires and wiring damage.

How It Works

A circuit breaker is like a bouncer at a nightclub. It knows how much current the circuit can handle (e.g., 15 amps for a standard outlet). If you plug in too many devices (overload) or a live wire touches a neutral one (short circuit), the breaker “trips,” cutting power to prevent overheating and fires.

Where You’ll Find Circuit Breakers:

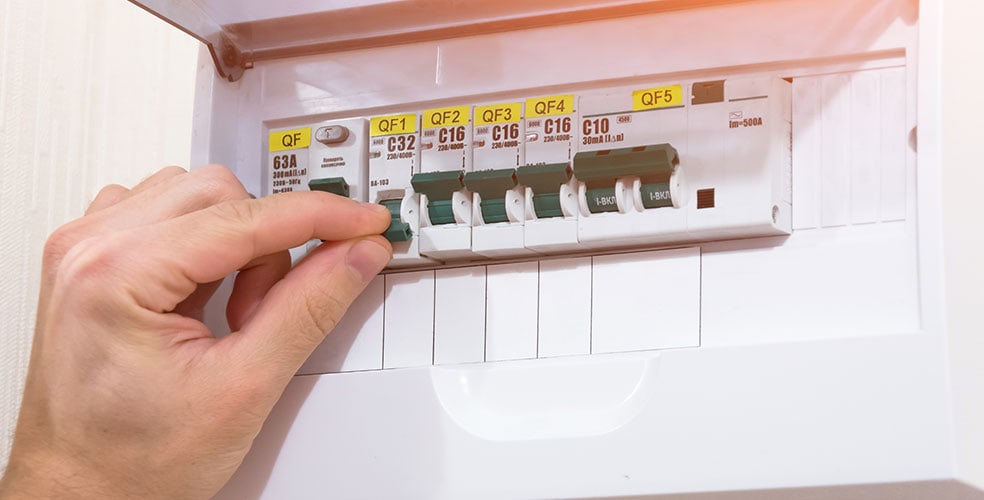

• Your main electrical panel (the one with all the switches).
• Protecting individual circuits (lighting, outlets, appliances).

RCD vs. Circuit Breaker: The Showdown

Let’s compare their roles side by side:

Feature	RCD Switch	Circuit Breaker
Main Purpose	Prevents electric shocks	Prevents fires/wiring damage
Triggers On	Current leakage (imbalance)	Overload or short circuit
Response Time	Milliseconds (0.03–0.3 seconds)	Seconds to minutes (depends on load)
Protects People?	✅ Yes—life-saving	❌ No—only protects equipment
Protects Wiring?	❌ No	✅ Yes
Required By Law?	Often in wet areas or new builds	Yes, in all modern homes

When to Use an RCD vs. a Circuit Breaker

You Need an RCD If…

• You’re using power tools outdoors (even with an extension cord).
• Your kitchen/bathroom outlets aren’t GFCI-protected.
• You have kids or pets who might poke things into sockets.
• Your home has old wiring (pre-2000s) without built-in RCDs.

Real-Life Example:

Your hair dryer falls into a sink full of water. The RCD detects the current surging into the water (and potentially through you) and kills the power instantly.

You Need a Circuit Breaker If…

• You’re plugging in high-wattage appliances (space heaters, AC units).
• Your lights flicker when you turn on the microwave.
• You smell burning near an outlet (trip the breaker immediately!).
• You’re renovating and adding new circuits.

Real-Life Example:

You plug a space heater, toaster, and air fryer into one outlet. The circuit overloads, the breaker trips, and you avoid a melted wire fire.

The Big Misconception: “I Don’t Need an RCD—My Breaker Will Protect Me!”

WRONG. Circuit breakers don’t care if electricity is flowing through your heart. They only care about the amount of current, not where it’s going. Without an RCD:

• A faulty appliance could electrify your toaster, and you’d never know until you touch it.
• A frayed phone charger could leak current into your bed frame.

Bottom line: RCDs save lives; breakers save property. You need both.

Wait, What’s an RCBO? (The Hybrid Hero)

An RCBO (Residual Current Breaker with Overload Protection) combines an RCD and circuit breaker into one device. It’s like the Swiss Army knife of electrical safety:

• Detects leaks and overloads.
• Ideal for high-risk areas (e.g., workshops, garages).
• More expensive but worth it for critical circuits.

How to Test Your RCD and Circuit Breaker

For RCDs:

1. Press the “Test” button on the outlet or panel.
2. Power should cut instantly.
3. Reset it with the “Reset” button.
Do this monthly. If it doesn’t trip, replace it ASAP.

For Circuit Breakers:

1. Switch the breaker off, then on.
2. If it trips again immediately, you’ve got a problem (overload, short, or faulty breaker).

Common Mistakes Homeowners Make

Using a Circuit Breaker as an On/Off Switch

Flipping breakers daily wears them out. Use them only for emergencies or maintenance.

Ignoring “Nuisance Tripping”

If your RCD trips constantly, don’t just reset it—find the leak. Common culprits:

• Water in outdoor outlets.
• Damaged appliance cords.
• Rodents chewing wires.

Installing a Cheap RCD

Off-brand RCDs may fail when you need them most. Stick to certified brands like Schneider, Siemens, or Eaton.

Do’s and Don’ts for Electrical Safety

Do’s	Don’ts
Label your breaker panel clearly	Use appliances with frayed cords
Install RCDs in wet areas	Overload outlets with power strips
Hire a licensed electrician	Assume old wiring is “good enough”

Message by Bass Elec: Teamwork Makes the Dream Work

RCDs and circuit breakers aren’t rivals—they’re partners. One guards your life; the other guards your home. In a perfect world, your electrical panel would have:

• Circuit breakers on every circuit.
• RCDs on high-risk circuits (wet areas, outdoor outlets).
• RCBOs for critical zones (home office, medical equipment).

Don’t wait for a near-electrocution or a flickering light to act. Audit your system, plug the gaps, and sleep soundly knowing your home isn’t a ticking time bomb.

Still confused? Drop a question below—let’s shock-proof your home together! 🔌💡

FAQs: Your Burning Questions, Answered

Q: Can I replace a circuit breaker with an RCD?
A: No! They do different jobs. You might need both on the same circuit.

Q: My RCD trips when it rains. Why?
A: Moisture is likely sneaking into an outdoor outlet or light. Call an electrician to seal it.

Q: Do smart homes need special protection?
A: Yes! Smart devices are sensitive. Use surge-protected RCDs or RCBOs.

Q: Are RCDs required in older homes?
A: Laws vary, but retrofitting is wise—especially in kitchens/bathrooms.

Q: Why does my breaker trip at 2 a.m. for no reason?
A: “Ghost trips” often mean a faulty appliance (like a fridge) is overloading the circuit.
